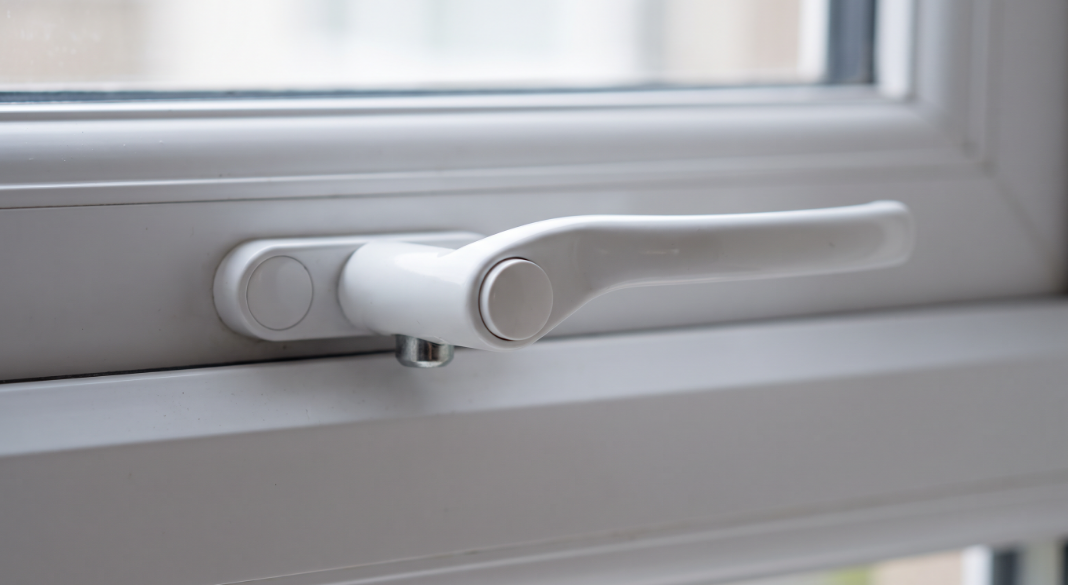

Are uPVC Window Handles Universal?

A handle box that says “universal” on the front doesn’t always match the one already screwed to your window.

Manufacturers use the word for a handle built to cover a wider range of spindle lengths, not one that fits every uPVC window in the country.

Some replacement handles come close to universal within certain limits, while most don’t, and buying the wrong one usually means a second trip to the shop.

Why “universal” window handles exist, and what they promise – By double glazing repair experts

A handle marketed as universal usually means multi-spindle: a telescopic or adjustable spindle that extends or retracts to suit several common lengths instead of one fixed size.

The adjustable spindle helps anyone unsure exactly what’s fitted.

The adjustable spindle doesn’t solve every problem, though.

A multi-spindle handle still needs the right lock type, the right screw spacing, and the correct turn direction for that window.

Get any one of those wrong and the adjustable spindle counts for nothing.

Across the UK, most fixed uPVC windows use one of two locking systems, and a universal handle only ever solves the spindle length.

The lock type and the screw centres are still down to you to check, whatever the box promises.

What decides whether an uPVC window handle fits

Handle type, spindle length and backset between them decide whether a replacement will work.

The lock type: espag or cockspur

Most modern uPVC windows use an espagnolette, or espag, mechanism, a form of multi-point locking where turning the handle pushes connecting rods along the frame edge to pull several locking points shut together.

A simpler cockspur lock is common on older uPVC windows and some timber window handles, using a single hook that swings into one keep on the frame.

An espag handle and a cockspur handle are not interchangeable, no matter how similar the spindle looks.

The espag handle needs to engage a gearbox that isn’t there on a cockspur window, and fitting one to the wrong lock type leaves the window unable to lock at all.

Spindle length and shape

The spindle is the square metal bar on the back of the handle that runs into the window frame and turns the lock mechanism.

Common lengths start at a 7mm square spindle and run through 15mm up to 30mm or more on older double glazing.

Even a couple of millimetres out stops the handle from seating properly on the mechanism.

Measure the spindle length on your existing handle, from the base of the handle to the tip, before you order anything, rather than guessing from memory.

Getting this measurement wrong is a common reason a replacement handle doesn’t fit.

Backset and screw spacing

Backset, sometimes called fixing centres, is the distance between the fixing screws either side of the spindle.

Common sizes include 43mm, though older frames and some timber handles use different step heights entirely.

Get the backset wrong and the new handle’s screw holes simply won’t line up, whatever the spindle does.

Handing, tilt and turn, and inline styles

A tilt and turn handle controls two separate opening modes on the same window. One tips the top inward for ventilation, the other swings the whole sash open on its side hinges.

Which mode you get depends on the handle’s position when you turn it.

Inline espag window handles sit low and flush against the frame, while cranked handles angle outward to clear a sill or blind.

Some handles are handed as well, built to turn one way only, so the side of the window a handle sits on decides whether you need the left or right version.

When a “universal” uPVC window handle still won’t work

A multi-spindle handle bought off the shelf can tick every box above and still fail on a window that needs a keyed handle.

Key-locking handles use a euro cylinder rather than relying on the spindle alone, which is how they secure the window when nobody’s home to check it.

Ground floor windows are often fitted with security-rated hardware, a TS007-rated anti snap lock cylinder being a common example.

Swapping in an unrated universal handle can quietly undo that protection even though the window still opens and closes fine.

A handle that’s gone stiff, or a window that won’t lock at all, needs diagnosing properly, rather than assuming a new universal handle will mask the fault.

A wedge or restrictor fitted to the frame can also catch on a handle with a different profile to the one it was set up around, so check those still move freely once a replacement handle is in place.

Getting the right uPVC window handle without the guesswork

A replacement uPVC window handle only works once the type, spindle and backset all match.

Working out the correct replacement from scratch usually means removing the old handle, measuring it properly and hoping the numbers match something on a shelf.

We measure and identify the handle you need on site, then fit it, rather than leaving you to order a universal handle and find out afterwards whether it was ever going to work.

Across Central Scotland, we identify, source and fit the exact replacement window handle your window needs, tilt and turn versions included.

Every job is backed with a 5-year guarantee.

When it’s the mechanism, not the handle

A handle that turns freely but leaves the window unlocked usually points to worn or misaligned locking gear rather than a faulty handle.

Our window repair team checks the gearbox and locking points to confirm which one has failed.

A handle that’s just gone stiff or loose might not need replacing at all, either.

Whatever the issue, we aim to help with a service that lasts.

Universal window handles: questions answered

Do universal uPVC handles really exist?

Not in the sense of fitting every window. What’s sold as a universal handle is usually a multi-spindle handle that adjusts to cover several spindle lengths, but it still needs to match your lock type and screw spacing to work.

Are espag handles universal?

No. Espag handles vary by spindle length, backset and handing, and a multi-point espag handle won’t engage a cockspur lock at all, so an espag replacement still has to be matched to the mechanism already fitted.

Can I fit an espag handle in place of a cockspur handle?

Not usually as a straight swap. An espag handle drives rods through a gearbox that a cockspur window was never built to have, so replacing one with the other means changing the locking hardware, not just the handle.

Do uPVC window handles come in left and right-handed versions?

Yes, on some styles. Certain tilt and turn handles and cranked handles only turn in one direction, so a handle that’s technically the right type can still jam if it’s fitted to the wrong side of the window.

Why won’t my new handle turn the window lock?

Usually because the spindle hasn’t seated fully in the mechanism, even though the handle looks fitted. Check the spindle length and lock type match before assuming the window mechanism itself has failed.

Stop guessing and get the right uPVC window handle first time

A “universal” label on the box only confirms the spindle adjusts, not that the lock type or backset match your window, so a wrong guess still means a trip back to the shop.

Sending us a photo or a quick call gets you the correct type, spindle and backset without the trial and error.

Call 01324 468 337, or send us a photo of your handle through our contact page, and we’ll tell you exactly what fits before you replace your uPVC window handle.
